Electrical Control Panels

We manufacture and supply a very high-quality HVAC panels which are a fuse-less type two co-ordinated starters for supply air fans. Our HVAC panel is equipped with the facility for remote operations It becomes compatible with BMS through potential free contacts

Features

• VFD Bypass provision available on request


• Electric insulation


• Facilitates the easy control of machines


• Longer serviceability


• It comes with auto-manual, local remote feature for VFD feeders


• All starters are provided with BMS compatibility as mandatory feature


• All HVAC panels are provided with one incoming MCB/MCC8 or MPCB as per consultant specifications

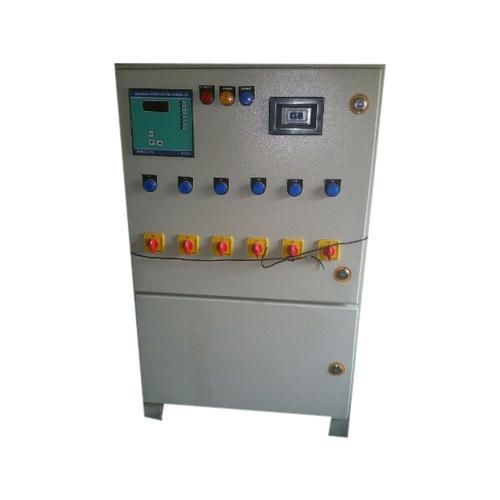

APFC panel products are fully automatic in operation and can be used to achieve: Consistently high-power factor under fluctuating load conditions Reduced kVA demand charges Lower energy consumption in the installation by reducing losses Preventive leading power factor in an installation l Elimination of low power factor penalty levied by electrical supply authorities

The VFD Panel (Variable Frequency drive panel) also known as VFD Control Panel are designed to control the speed of electric motor and feed pump. They are widely used in drilling, pumping and other large machine applications. The VFD panels are widely used in extruder plants, rolling Mills, tube mills, paper mills, cable industry and CTL Lines

Salient Features

• Cabinet and Construction : Module type construction in compliance to 4B compartmentalization.
• Standardised NEMA 12-13 Enclosures :Corrosion resistant
• Ingress Protection : ( IPXX ) [ IP-54 , IP-55 ]
• Expandable : Expandable by interconnecting multiple units.

Basic Advantages of VFD Control Panels Are

• Keeps starting current in control
• Reduces power line disturbances
• Demands lower power on start
• Helps in controlling operating speed and acceleration
• Limits and adjusts torque
• Saves energy and cost

Details

• Dedicated solution for packaging industry
• Removes gears and mechanical arrangements and provide hassle free length setting.
• High accuracy and production speeds.
• Accuracy +1mm.
• Speeds up to 80 meters per minute.
• Stacking, tagging system or material transfer conveyors are also available.
• Available as new order or even Retrofitting of existing machine.
• Touch screen interface with high accuracy servo system.
• Reliable feed control using AC motor and drive.

For pharmaceutical industry we have provided systems for

• Needle assembly machine
• Syringe assembly machine
• Needle inspection system
• Syringe packing machine
• Packed material Inspection

Details

• Multiple successful executions of fully automatic slitting and cutting line systems
• Systems are highly accurate and durable made using standard components.
• Proved by numerous copies running currently in Industry
• Highly precise servo controlled or encoder and VFD based system.
• High speed production process.
• Easy and effective touch interface.
• All needed safety features and inter locking. With all supported technical documentation
•
